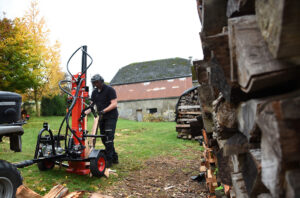

GTL14000

The GTL14000 log splitter from GTM Professional has a splitting force of 14 tons. It processes logs up to 104 cm in length and 30 cm in diameter. The strong Loncin G200F engine has a cylinder capacity of 196 cc and delivers 6.5 hp.

The wedge covers a distance of 85 cm with two possible speeds: 4.1 cm/sec at full power or 18.3 cm/sec when fast movement is required. The return of the wedge is infinitely adjustable in height.

The log splitter is equipped with a towbar to easily move the machine (the machine is not suitable for driving on public roads). The lifting cylinder ensures that the log splitter can be quickly put into use. In addition, the cylinder can be lowered completely for easy transport of the machine in a van or for compact storage in the barn.

• Engine: Loncin G200F - 196 cc - 6,5 hp
• Splitting force: 14 ton
• Hydraulic pressure: 246 bar
• Hydraulic oil capacity: 26 l
• Diameter wood: 8~30 cm
• Length wood: 56~104 cm
• Forward speed: 4.1 cm/s - 18.3 cm/s
• Retract speed: 5,2 cm/s
• Retract height infinitely adjustable
• Dimensions (L x W x H): 224 x 120 x 234 cm
• Weight: 236 kg
